Fixture Cleaner SMT Cleaning Equipment Finishing Clean Rinse Dry Automatically

Name: Fixture Cleaner SMT Cleaning Equipment Finishing Clean Rinse Dry Automatically
Brand: ChuangWei
Price: 1 USD

China Fixture Cleaner SMT Cleaning Equipment Finishing Clean Rinse Dry Automatically wholesale

Brand Name : ChuangWei

Model Number : CW-5200

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Supply Ability : 100 sets/month

Delivery Time : 10 days

Packaging Details : plywood case

Max fixture size : ￠1000*H400(mm)

Filter system : 3 levels

Spray pressure : 3-6KG

Name : Fixture cleaning machine

Contact Now

Fixture Cleaner SMT Cleaning Equipment Finishing Clean Rinse Dry Automatically

Machine description:

CW-5200 fixture cleaning machine is used to clean Grease, Flux, Rosin on the surface of all kinds of SMT parts, such as composite stone fixture, tray, reflow oven cooler and filter, wave soldering oven claw, chains and nets, etc.

Machine Feature:

1. PLC procedure control, touch panel operation, world class reliable electric parts.
2. SUS 304 machine wash room and frame, resit Acid and Alkali corrosion, 10 years life time.
3. One-button mode of operation, high pressure clean + rinse + hot air dry, all process complete in one time automatically.
4. Closed-loop clean and rinse, clean solvent and rinse solvent is filtered in the machine.
5. Solvent recycled to use and cost down.
6. The fixtures are clean and dry after cleaning, standby and ready for use.
7. Standard equipped with auto fill-in and drain-out function.
8. Labor cost save, clean efficiency raise

9. Clean solution heat and keep temperature function.

Machine Specification:

Item	Parameter
Max fixture size	￠1000*H400(mm)
Spray system	All round rotate spray clean and rinse
Filter system	50/20/1um filter(3 levels)
Clean tank capacity	80L
Rinse tank capacity	80L
Spray pressure	3-6kg
Air supply	0.5-0.7Mpa
Machine weight	560kgs
Machine size	2100mm(L) x 1380mm(W) x 1400mm(H)

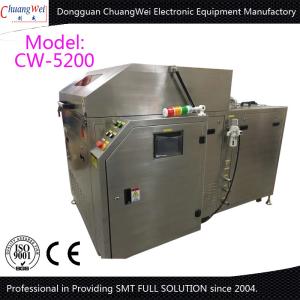

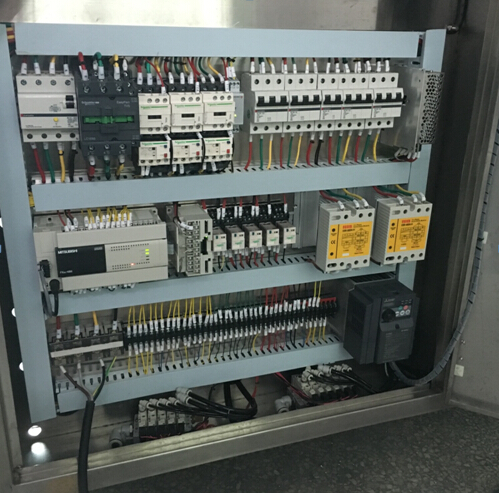

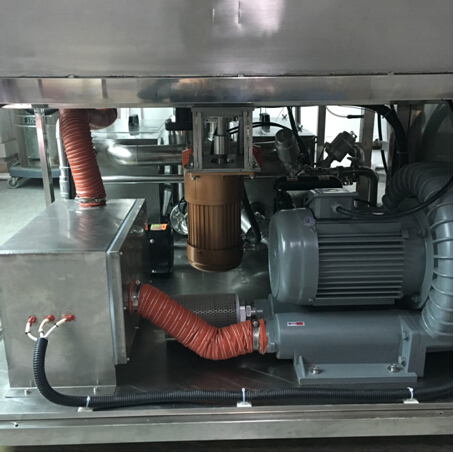

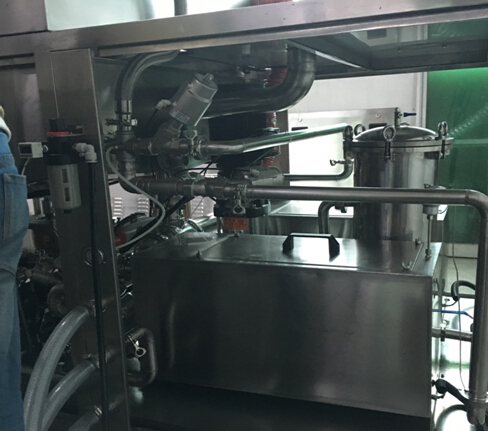

Machine Photos:

Fixture Cleaner SMT Cleaning Equipment Finishing Clean Rinse Dry Automatically

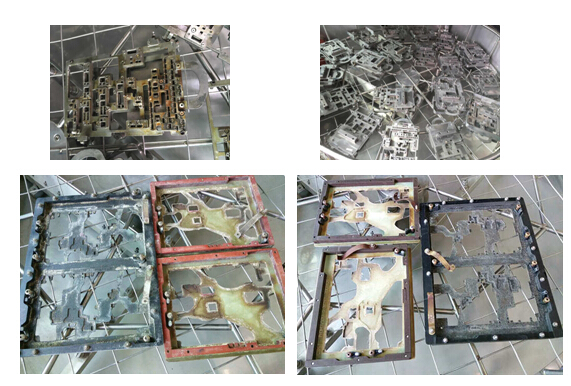

Cleaning Effect:

Fixture Cleaner SMT Cleaning Equipment Finishing Clean Rinse Dry Automatically
